601

THREADED ENDS

Technical information

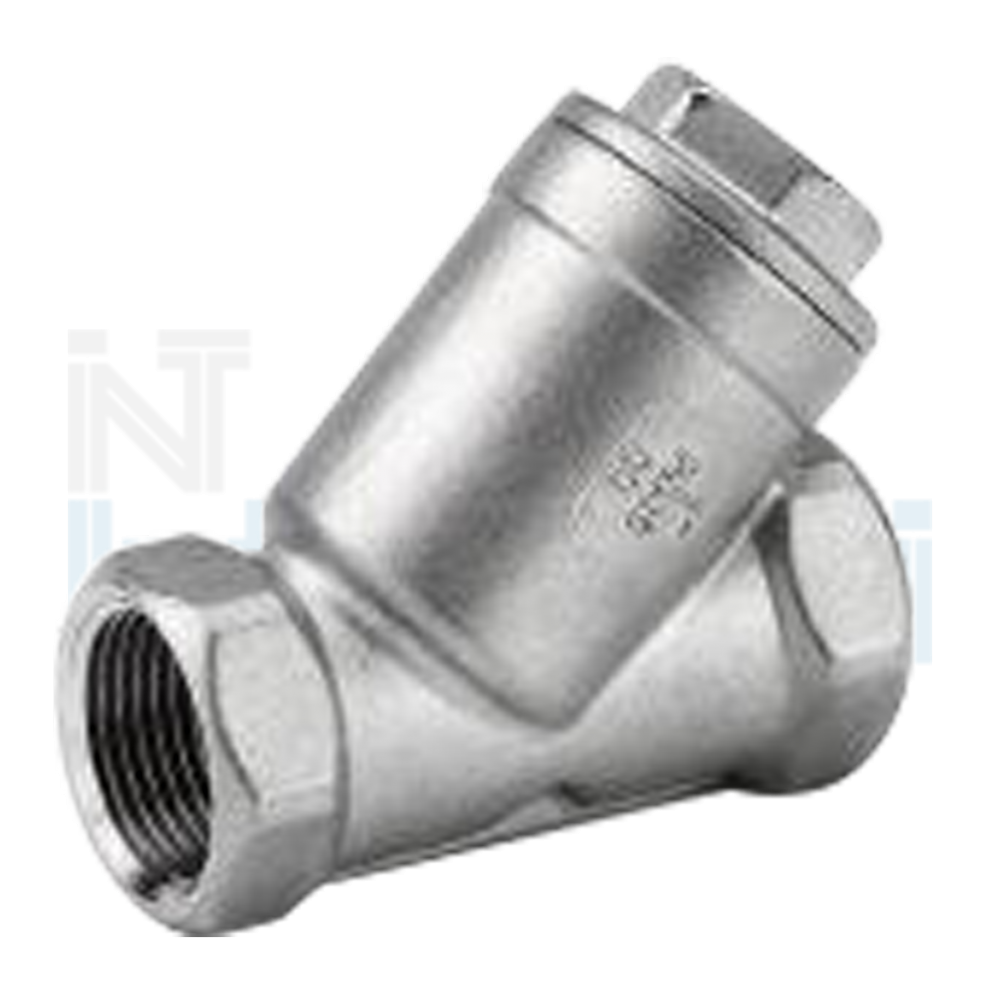

1. ”Y” Strainer
2. Threaded ends according EN 10226-1  (EX ISO 7-1 e DIN 2999)
3. Made of stainless steel CF8M
4. Max. working pressure 40 bar

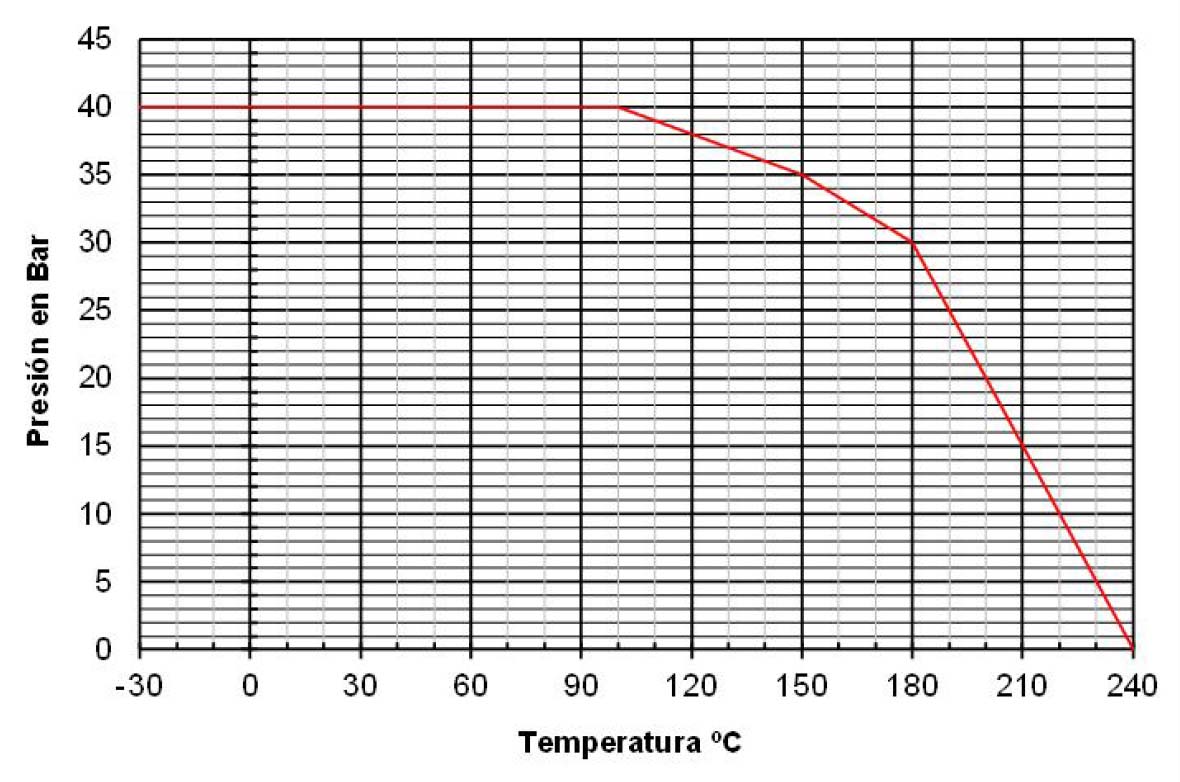

5. Working temperature -30 °C + 240 °C

601

THREADED ENDS

Technical information
1. ”Y” Strainer
2. Threaded ends according EN 10226-1  (EX ISO 7-1 e DIN 2999)
3. Made of stainless steel CF8M
4. Max. working pressure 40 bar
5. Working temperature -30 °C + 240 °C

N°

Nome

Name

Materiale

Material

Finitura Superficiale

Surface Treatment

1

Corpo / Body

CF8M

Sabbiata / Shot blasting + Pickling

2

Filtro / Strainer

AISI 316

---

3

Guarnizione / Gasket

PTFE

---

4

Tappo / Plug

CF8M

Sabbiata / Shot blasting + Pickling

Diametri

Size

Codice

Code

PN

Dimensioni / Dimensions (mm)

Peso

Weight

(Kg)

A

L

ø d

e

1/4”

IV601 1/4

40

30

65

1

1

0.29

3/8”

IV601 3/8

40

30

65

1

1

0.21

1/2”

IV601 1/2

40

40

65

1

1

0.22

3/4”

IV601 3/4

40

45

80

1

1

0.35

1”

IV6011

40

55

90

1

1

0.66

1 1/4”

IV6011 1/4

40

65

105

1

1

0.77

1 1/2”

IV6011 1/2

40

70

120

1

1

1.15

2”

IV6012

40

85

140

1

1

1.76


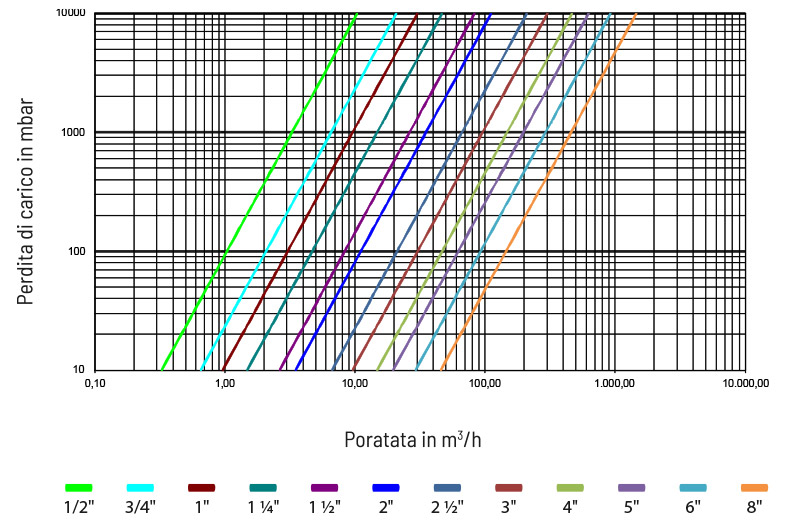

Misura

Size

Coppia

Maximum torque value (Nm)

1 1/4" - 4"

50
