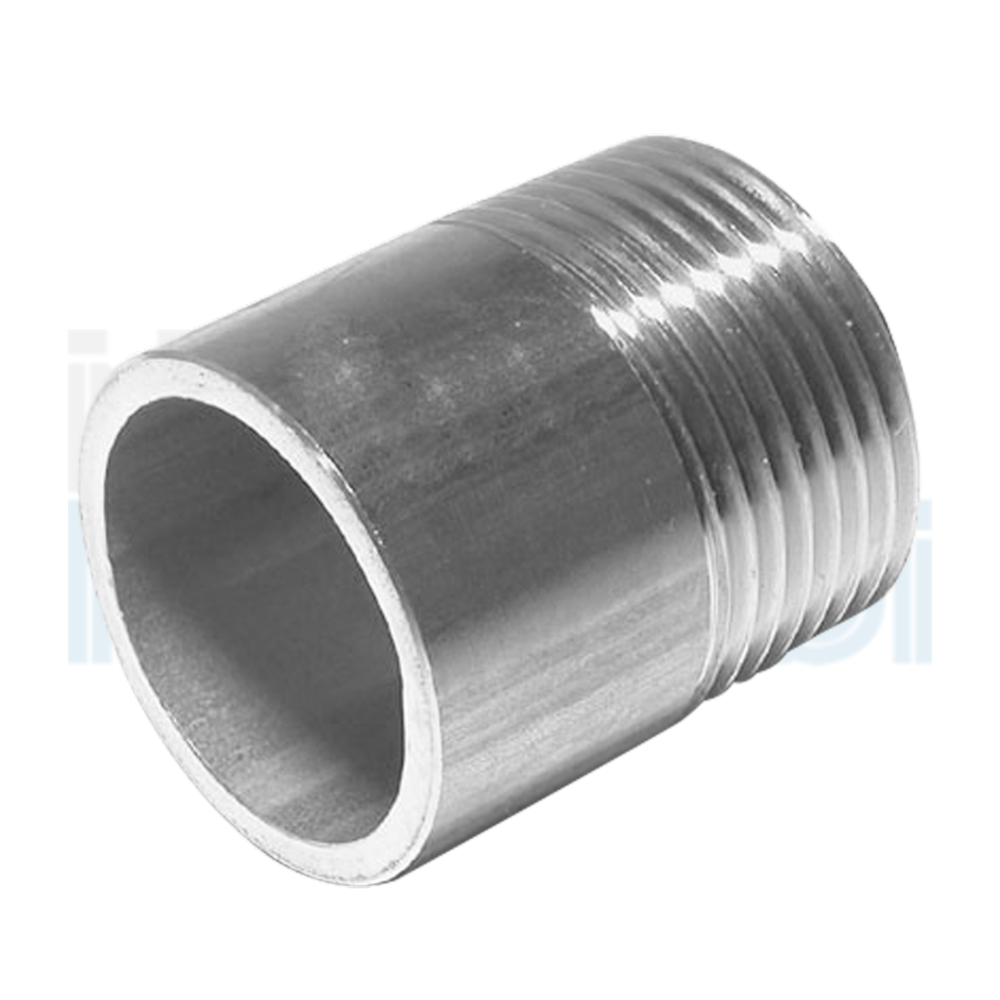

TECHNICAL INFORMATION:
Made from pipes welded (SCH 40)
Dimensions and tolerances type EN 10241 (EX DIN 2982)
Thread: according to EN 10226-1 (EX ISO 7-1)
Steel: AISI 316/EN 1.4401, AISI 304/EN 1.4301
Rate pressure: 150 Lbs-PN10
Certificates EN 10204/2.1
TECHNICAL INFORMATION:
Made from pipes welded (SCH 40)
Dimensions and tolerances type EN 10241 (EX DIN 2982)
Thread: according to EN 10226-1 (EX ISO 7-1)
Steel: AISI 316/EN 1.4401, AISI 304/EN 1.4301
Rate pressure: 150 Lbs-PN10
Certificates EN 10204/2.1
|
Size mm |
1/8" |
1/4" |
3/8" |
1/2" |
3/4" |
1" |
1 1/4" |
1 1/2" |
2" |
2 1/2" |
3" |
4" |
|
Ø 1 |
10 |
14 |
17,2 |
21,4 |
26,7 |
33,4 |
42,2 |
48,3 |
60,4 |
73,1 |
88,9 |
114,3 |
|
A |
11 |
11 |
12 |
15 |
17 |
20 |
21 |
21 |
26 |
28 |
31 |
35 |
|
L |
30 |
30 |
30 |
35 |
40 |
40 |
50 |
50 |
50 |
60 |
70 |
80 |
|
SP/THK |
2,0 |
2,2 |
2,3 |
2,77 |
2,87 |
3,38 |
3,56 |
3,68 |
3,91 |
5,16 |
5,49 |
5,87 |
