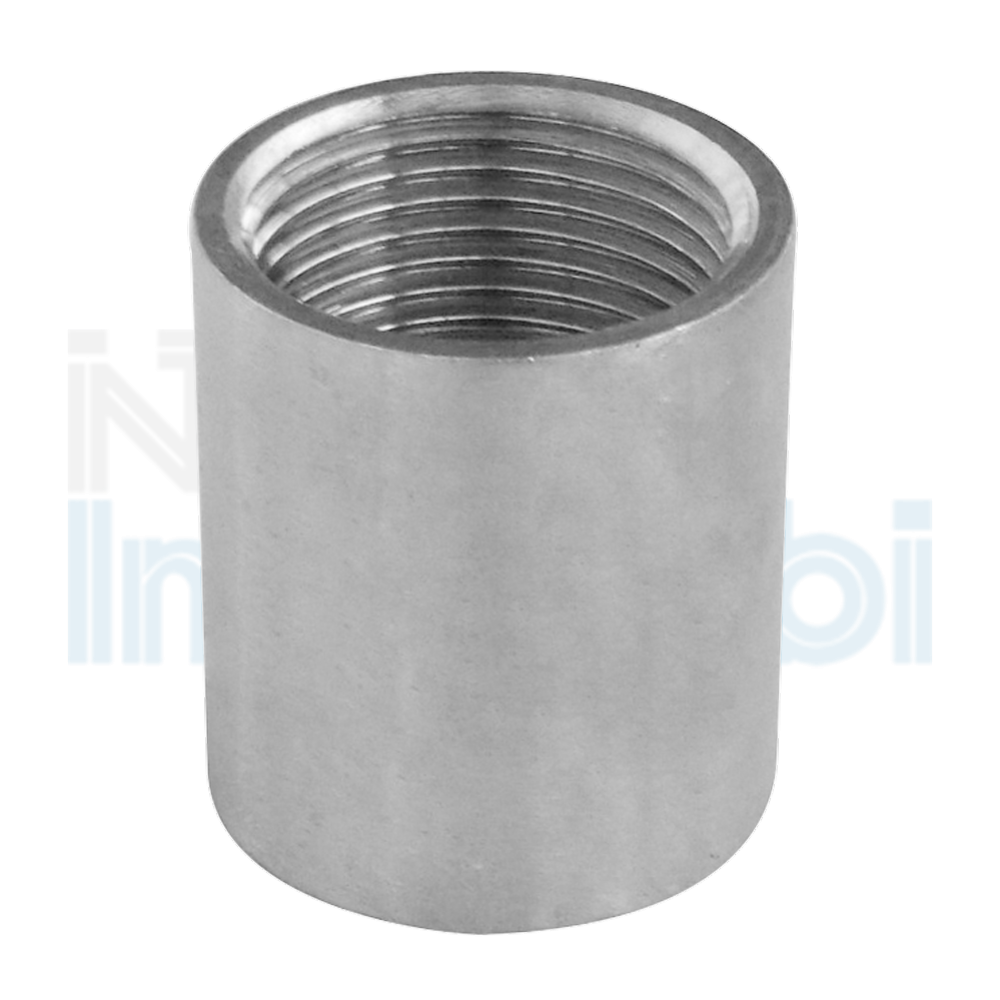

TECHNICAL INFORMATION:
Execution: microcasting
Dimensional standard: type EN 10241 (EX DIN 2986)
Thread: according to EN 10226-1 (EX ISO 7-1)
Steel: AISI 316/EN 1.4401, AISI 304/EN 1.4301
Rate pressure: 150 Lbs
Certificates EN 10204/2.1
TECHNICAL INFORMATION:
Execution: microcasting
Dimensional standard: type EN 10241 (EX DIN 2986)
Thread: according to EN 10226-1 (EX ISO 7-1)
Steel: AISI 316/EN 1.4401, AISI 304/EN 1.4301
Rate pressure: 150 Lbs
Certificates EN 10204/2.1
|
Size mm |
1/8" |
1/4" |
3/8" |
1/2" |
3/4" |
1" |
1 1/4" |
1 1/2" |
2" |
2 1/2" |
3" |
4" |
|
Ø 1 |
15 |
18,5 |
21,3 |
26,6 |
31,8 |
39,5 |
48,3 |
54,5 |
66,2 |
82 |
95 |
121 |
|
L |
17 |
25 |
26 |
34 |
36 |
43 |
48 |
48 |
56 |
65 |
71 |
83 |
