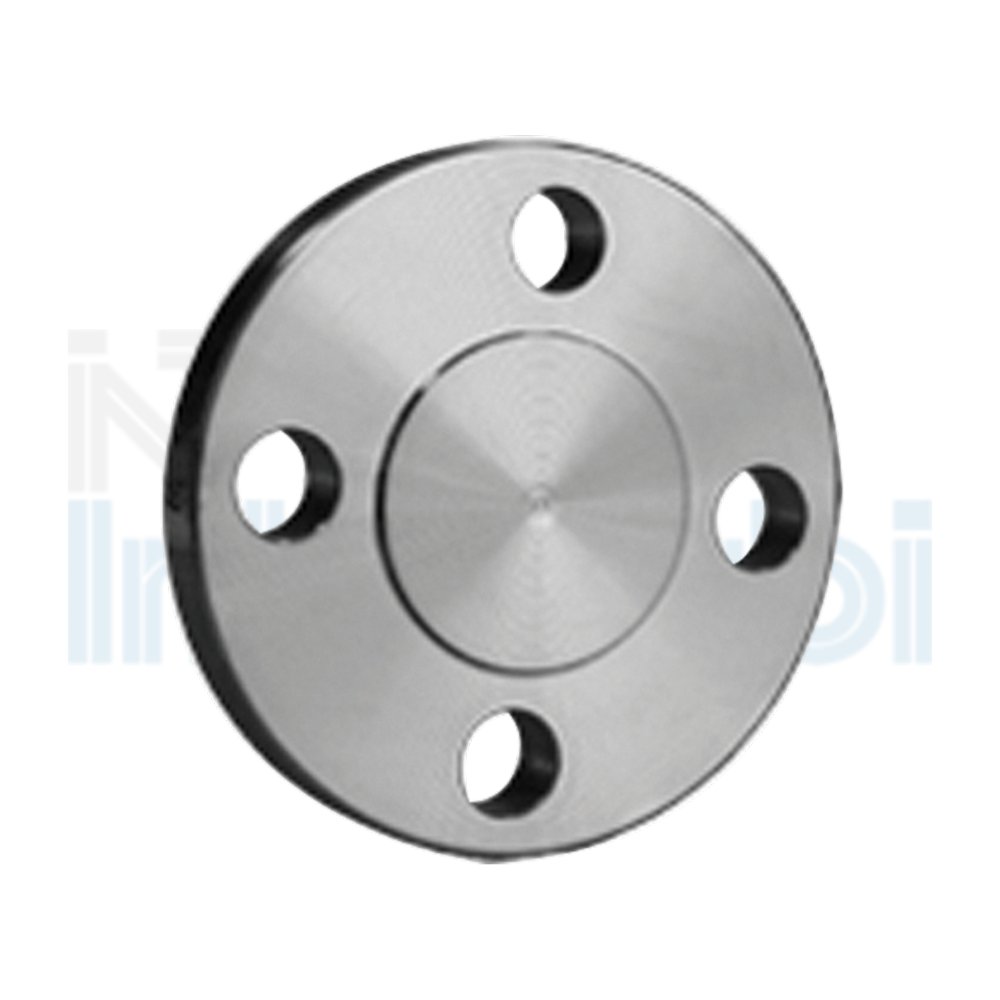

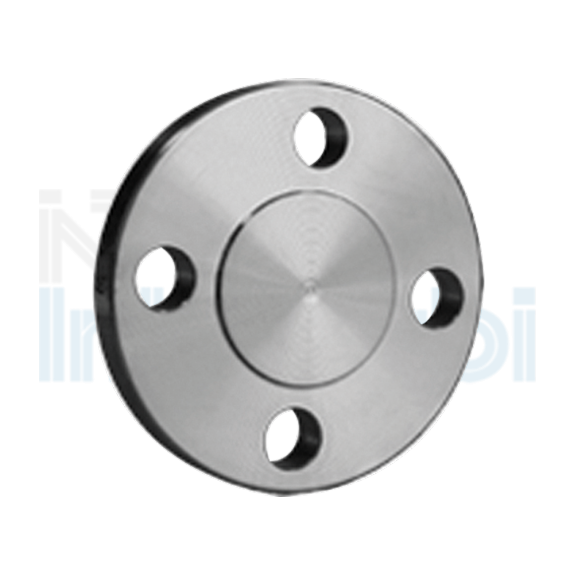

ASME B 16.5 | ASTM A182 | ASTM A 403
150 / 300 / 600 LBS
ASME B 16.5 | ASTM A182 | ASTM A 403
150 / 300 / 600 LBS
|
150 LB |
||||||||
|
Nom. Size |
O.D. mm |
D mm |
b mm |
g mm |
l mm |
k mm |
Fori Holes |
Kg |
|
1/2" |
21.3 |
90 |
11.2 |
35.1 |
15.7 |
60.3 |
4 |
0.42 |
|
3/4" |
26.7 |
100 |
12.7 |
42.9 |
15.7 |
69.9 |
4 |
0.61 |
|
1" |
33.4 |
110 |
14.2 |
50.8 |
15.7 |
79.4 |
4 |
0.86 |
|
1 1/4" |
42.2 |
115 |
15.7 |
63.5 |
15.7 |
88.9 |
4 |
1.30 |
|
1 1/2" |
48.3 |
125 |
17.5 |
73.2 |
15.7 |
98.4 |
4 |
1.53 |
|
2" |
60.3 |
150 |
19.1 |
91.9 |
19.1 |
120.7 |
4 |
2.42 |
|
2 1/2" |
73.0 |
180 |
22.3 |
104.8 |
19.1 |
139.7 |
4 |
4.10 |
|
3" |
88.9 |
190 |
23.9 |
127.0 |
19.1 |
152.4 |
8 |
4.93 |
|
4" |
114.3 |
230 |
23.9 |
157.2 |
19.1 |
190.5 |
8 |
7.00 |
|
5" |
141.3 |
255 |
23.9 |
185.7 |
22.4 |
215.9 |
8 |
9.00 |
|
6" |
168.3 |
280 |
25.4 |
215.9 |
22.4 |
241.3 |
8 |
11.30 |
|
8" |
219.1 |
345 |
28.4 |
269.7 |
22.4 |
298.5 |
8 |
19.69 |
|
10" |
273.0 |
405 |
30.2 |
323.9 |
25.4 |
362.0 |
12 |
28.80 |
|
12" |
323.8 |
485 |
31.8 |
381.0 |
25.4 |
431.8 |
12 |
43.20 |
|
14" |
355.6 |
535 |
35.0 |
412.7 |
25.4 |
476.2 |
12 |
59.00 |
|
16" |
406.4 |
595 |
36.6 |
469.9 |
28.6 |
539.8 |
16 |
79.00 |
|
18" |
457.2 |
635 |
39.7 |
533.4 |
31.8 |
577.9 |
16 |
93.70 |
|
20" |
508.0 |
700 |
42.9 |
584.2 |
31.8 |
635.0 |
20 |
122.00 |
|
24" |
609.6 |
815 |
47.7 |
692.2 |
35.1 |
749.3 |
20 |
185.00 |
|
300 LB |
||||||||
|
Nom. Size |
O.D. mm |
D mm |
b mm |
g mm |
l mm |
k mm |
Fori Holes |
Kg |
|
1/2" |
21.3 |
95 |
14.3 |
35.0 |
15.7 |
66.7 |
4 |
0.64 |
|
3/4" |
26.7 |
115 |
15.9 |
42.9 |
19.0 |
82.6 |
4 |
1.11 |
|
1" |
33.4 |
125 |
17.5 |
50.8 |
19.0 |
88.9 |
4 |
1.39 |
|
1 1/4" |
42.2 |
135 |
19.1 |
63.5 |
19.0 |
98.4 |
4 |
2.00 |
|
1 1/2" |
48.3 |
155 |
20.7 |
73.1 |
22.3 |
114.3 |
4 |
2.66 |
|
2" |
60.3 |
165 |
22.3 |
91.9 |
19.0 |
127.0 |
8 |
3.18 |
|
2 1/2" |
73.0 |
190 |
25.4 |
104.8 |
22.3 |
149.2 |
8 |
5.10 |
|
3" |
88.9 |
210 |
28.6 |
127.0 |
22.3 |
168.3 |
8 |
6.81 |
|
4" |
114.3 |
255 |
31.8 |
157.2 |
22.3 |
200.0 |
8 |
11.50 |
|
5" |
141.3 |
280 |
35.0 |
185.7 |
22.3 |
235.0 |
8 |
14.50 |
|
6" |
168.3 |
320 |
36.6 |
215.9 |
22.3 |
269.9 |
12 |
20.90 |
|
8" |
219.1 |
380 |
41.3 |
269.7 |
25.4 |
330.2 |
12 |
34.30 |
|
10" |
273.0 |
445 |
47.7 |
323.8 |
28.6 |
387.4 |
16 |
57.00 |
|
12" |
323.8 |
520 |
50.8 |
381.0 |
31.7 |
450.8 |
16 |
87.00 |
|
600 LB |
|||||||
|
Nom. Size |
D mm |
b mm |
g mm |
l mm |
k mm |
Fori Holes |
Kg |
|
1/2" |
95 |
14.3 |
35.0 |
15.7 |
66.7 |
4 |
0.70 |
|
3/4" |
115 |
15.9 |
42.9 |
19.0 |
82.6 |
4 |
1.20 |
|
1" |
125 |
17.5 |
50.8 |
19.0 |
88.9 |
4 |
1.50 |
|
1 1/4" |
135 |
20.7 |
63.5 |
19.0 |
98.4 |
4 |
2.00 |
|
1 1/2" |
155 |
22.3 |
73.1 |
22.2 |
114.3 |
4 |
3.20 |
|
2" |
165 |
25.4 |
91.9 |
19.0 |
127.0 |
8 |
4.30 |
|
2 1/2" |
190 |
28.6 |
104.8 |
22.2 |
149.2 |
8 |
6.00 |
|
3" |
210 |
31.7 |
127.0 |
22.2 |
168.3 |
8 |
8.00 |
|
4" |
275 |
38.1 |
157.2 |
25.4 |
215.9 |
8 |
18.0 |
|
5" |
330 |
44.4 |
185.7 |
28.6 |
266.7 |
8 |
28.5 |
|
6" |
355 |
47.6 |
215.9 |
28.6 |
292.1 |
12 |
35.5 |
|
8" |
420 |
55.6 |
269.7 |
31.7 |
349.2 |
12 |
58.0 |
|
10" |
510 |
63.5 |
323.8 |
34.9 |
431.8 |
16 |
98.0 |
|
12" |
560 |
66.7 |
381.0 |
34.9 |
488.9 |
20 |
125 |
